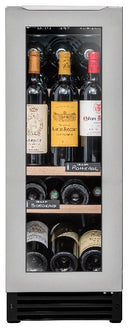

Avintage - 22 Bottle Undercounter Wine Cooler - AVU22TX1

Save £74.00

Sale price£825.00 Regular price£899.00


From one of the leading French manufacturers, Avintage, comes this single-zone wine fridge that can hold 22 bottles and operates at a quiet 37dB. It comes with adjustable feet (+7cm), a reversible stainless-steel door, and 3-layer tempered glass, making it both versatile and elegant. The UV-protected glass door ensures that this compact wine cooler incorporates the same advanced wine cooling technology found in the best freestanding models.

It is ideal for those who require a discreet undercounter wine fridge for their kitchen, especially when space is limited to a width of 30cm. The temperature in the single zone can be adjusted from 5°C to 20°C. Additionally, the provided black shelf allows you to store your opened bottles in an upright position.


  • Single Zone Undercounter Wine Fridge
  • 22 Bottle Capacity on 4 semi-sliding wire shelves
  • Single temperature zone can be set between 5°C and 20°C
  • Stainless-steel, UV protected glass door
  • Freestanding or Built-In
  • Reversible Door
  • White LED lighting
  • Noise level: 37 dB
  • Anti-vibration system
  • Original A energy rating (pre March 21)
  • Free Two Year parts and labour warranty included
  • Dimensions - H: 817-887mm, W: 295mm, D: 574mm
  • Complimentary bottle of fine wine


The AVU22TX1 is an undercounter wine cooler for service that protects your wines throughout the year and allows you to serve at the optimum temperature. This single-zone wine fridge is ideal for those who primarily store one type of wine, such as red or white, which requires the same storage temperature.

The programmable temperature zone ensures a stable environment, while the anti-vibration technology maintains sediment stability. The UV-protected door shields against harmful rays, and the automatic humidity management prevents mould and drying within the unit.

The Avintage AVU22TX1 is a built-in wine cooler. Ensure that the width gap in your kitchen design is sufficient to accommodate the wine cooler before ordering. It is designed to fit a 300mm width gap, requires a minimum depth of 577mm, and accommodates a height range of 817-887mm, thanks to its adjustable feet that allow for height alterations.

At 37 decibels and boasting a previous A energy rating, this ranks as one of our quietest and most environmentally friendly undercounter wine coolers.


  • UK's largest collection of wine fridges with London showroom
  • Fast and Free Delivery - 2 Man Team - Unpack & Position
  • Rated Excellent with a Five Star Trustpilot Score
  • Two Years Warranty & UK Servicing Team
  • Official UK Brand Partner = Latest Models Guaranteed

    How many bottles will the Avintage AVU22TX1 hold?

    This wine fridge can hold up to 22 bottles on 2 semi-sliding wire shelves with a wooden front, and 2 semi-sliding wire half-shelves , also featuring a wooden front

    The best way to optimise space in your wine fridge is to stack the same bottle type (Bordeaux or Burgundy or Alsace for example) on the same shelves.

    Can I pay for this wine fridge in instalments?

    You can pay by instalments over 6, 12, 24 or 36 months with PayPal Credit with the first 4 months interest free. Choose PayPal at check-out and select PayPal Credit to pay by instalments. We also accept all major credit and debit cards including Amex, Google Pay, Shop Pay and Apple Pay.

    Does the AVINTAGE AVU22TX1 come with a manufacturer warranty?

    Yes, there is a two year warranty on this wine cooler.

    Can I customise this wine fridge to suit my needs?

    Use the chat function to speak to us about changes you may want to make to the wine fridge, for example, changing the side the door opens or extending the warranty.

    What is the energy rating of this wine cooler?

    Pre March 2021 this wine fridge had an energy efficiency rating of "A" but with the changes to the efficiency scale this wine fridge now ranks "F". For more information on these latest energy rating changes to all electrical appliances please see our blog post on energy rating changes for wine coolers .

    How do I install this wine cooler?

    The Avintage AVU22TX1 is an undercounter wine cooler designed to fit into a kitchen gap of 300mm. To build this wine cooler into your kitchen please check the size dimensions in the table below but you'll need a minimum width gap of 30cm. As a front venting wine cooler you will need to ensure that the grille is not obstructed so that the wine cooler can operate effectively.

    Looking for another wine cooler from Avintage?

    CoolerSomm carries all the Avintage wine coolers and wine fridges click the link to view the full range.


    Once an order is placed we will contact you within a few working hours to confirm the order and arrange a delivery date suitable to you. On the date of delivery we will give you a time slot when you can expect delivery and the driver will call one hour before arrival.

    UK mainland delivery is free. Delivery costs to the Republic of Ireland and Northern Ireland depend on the size of the unit. See the delivery costs table below.

    Two Man Carry-In Delivery Service Delivery Cost
    UK Mainland Free
    Northern Ireland Under Counter £54
    Northern Ireland Full Size
    Republic of Ireland Under Counter £55
    Republic of Ireland Full Size £95

    We provide a professional two-man delivery team who will deliver the wine cooler to the ground floor room of your choice, unpack, place your wine cooler in your desired spot and take the excess wrapping away.

    If you need your wine cooler placing in a room either up or down flights of stairs or you can envisage any access issues during delivery please contact us in advance to outline the specifics of your delivery.

    Lastly, when signing for delivery, please ensure you are happy with the condition of your purchase before signing for the goods. Click for a full run-down of what to expect on delivery day.


    Product Specification

    Bottle Loading

    Installation Diagram

    AVINTAGE AVU22TX1 Product Features

    Key Features
    Standard Warranty 2 Years
    Efficiency Rating Pre 03/21 - A | Post 03/21 - G
    Temperature Zone 5-20°C
    Dimensions H: 817mm, W: 295mm, D: 574mm
    Bottle Capacity - Shelves mounted (Bordeaux) 22
    Space for large bottles No
    Humidity Range (%) 55-85
    Climate Classification SN
    Noise Level (dB) 37

    Casing Black Sheet Metal
    Glass UV protected door
    Lock No
    Hinge Side Right
    Reversible Door Yes

    Temperature zones (2)
    Lighting White LED
    Lighting on/off switch
    Total Shelves 4
    Display Shelves 0
    Number of bottles per shelf Up to 6
    Shelf Material Wire Shelves

    Key Functions
    Optimal Use
    User Interface Digital displays
    Active Carbon Filters
    Vibration Free Yes
    Cooling System Compressor
    Winter System No
    Defrost Function Automatic
    Acoustic Temperature Alarm Yes
    Acoustic Door Alarm Yes

    General Information
    Installation Type Freestanding or Built-In
    Warranty Extension Available No
    Transport Weight
    Net Weight
    Power Consumption (kWh/annum)
    Voltage 220-240V
    Delivery, Unwrap, Install 2 Man Team - FREE
