Description
For wine lovers looking for the ultimate solution in wine display and storage, a temperature-controlled wine wall by DELLA MARTA, the leading Italian brand previously known as EXPO, could be the ideal choice. To create your perfect wine wall, visit the configuration module.
The Mod 10 series offers a bespoke refrigerated wine wall tailored to your preferences, allowing you to select a range of internal shelving options.
The MD10s offer sideway stored bottles, the MD12s horizontally laid display storage, the MD13s offer stood shelving and the MD14s offer a combination of any of these types within the same unit.
Like all EXPO models you can select a frame style that complements your home's décor and furnishings as well as ambient lighting. By combining multiple modules, you can create a piece of wine furniture that is uniquely yours.
We support the full range of wine walls from Expo including the freestanding Teca home range, the built in Teca B range, the Mod 10 (this model) and Mod 20 restaurant wine walls too for delivery from Italy to the UK, Europe, the USA & Worldwide.
The MD-10 can be set up as a freestanding unit or integrated into a wall or alcove for a seamless look, depending on the selected model. The Mod 10 series features a complete aluminium structure with a wooden frame available in either a traditional or linear design. Our team is on hand to help you create the ideal wine wall for your residence. The prices displayed on our website are for the RAL9005 matte black frame with standard LED lighting, however, the unit can be customized to your preferences. - See the section on the MOD 10 in the Della Marta catalogue.
With 360°, UV protected glass casing your wine collection is on display from all angles. With a quiet compressor and a charcoal filter added to the home edition of the Mod 10 collection you can be sure the wine wall runs quietly and has the ability to store and mature your wines safely for years to come. Contact us for a quote/free consultation
PRODUCT HIGHLIGHTS
- MD-10 can be installed as a freestanding unit or built into a wall
- Bottle capacity ranges from 60 to 120
- Choice of 3 versions featuring 2 different depths
- Aluminium finish with warm white LED as standard
- HPL/MDF mountable, snap on frames available
- 360°, UV-protected glass casing
- Choice of wood or laminate frames
- Charcoal filter for long term storage
- Multi-Zone temperature range 4 - 20°C
- Rechargeable carbon filter
- Digital temperature controller
- Automatic defrost and automatic evaporation system
- Magnetic strips for the decorative trims
- White LED lighting or RGB remote control lighting
- Lockable Unit with Key
- Anti-vibration system
- 1 Year parts and labour
- Free case of Pol Roger champagne as gift
Choice of 3 models (2 different depths)
-
MD-H10: 60 Bottle capacity, 363mm depth, front glass doors
- MD-M10: 120 Bottle capacity, 515mm depth, front glass doors
- MD-C10: 120 Bottle capacity, 520mm depth, front and back glass doors
PRODUCT OVERVIEW
The Mod 10 series offers a personalised refrigerated wine cabinet experience, allowing you to select a frame style that complements your home's ambiance and furnishings. Additionally, you have the option to combine multiple modules, creating a distinctive piece of furniture. The base price listed on our website includes an RAL9005 matte black frame with standard LED lighting; opting for RGB lighting and premium coatings/finishes will incur additional charges. Contact us to create a bespoke design.
CUSTOMISE THE WINE WALL
Several elements can be customised and these are additional extras including;
The Frame: Choose between a 1) Linear finish or 2) Dune finish
The Frame Finish: choose from a range of finishes from matte black/white, laminated textured wooden finishes to even your own RAL colour and gold/silver painted finishes (prices vary). Please see the catalogue here for the range of frames and colours available.
The Bottle Configuration: The MD-10 comes with horizontal shelving only, if you would like to customise shelving, please see MD-14.
- Add optional extras (additional charges apply - please contact us to arrange this):
1) Remote control lighting (RGB multicoloured / CBD dimmable warm/white)
2) Sprayed all black (matte) internally and externally
WHICH MODELS ARE AVAILABLE?

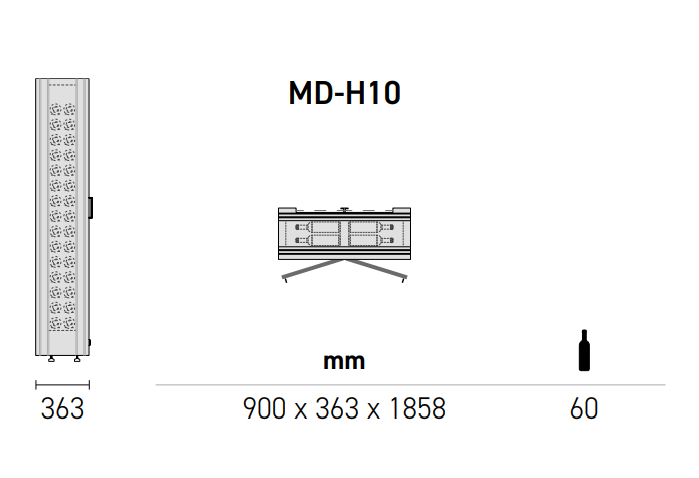

MD-H10 MODEL
The slimline version at a depth of just 363mm, the MD-H10 can hold 60 bottles of wine and comes with white LED lighting, a choice of casing design, quiet cooling at just 38 dB and 2 sliding glass doors with a solid back wall. This wine wall benefits from a lock and key, charcoal filter for ageing and an anti vibration system.
Dimensions: Height: 1858mm Width: 900mm Depth: 363mm Weight: 97kg

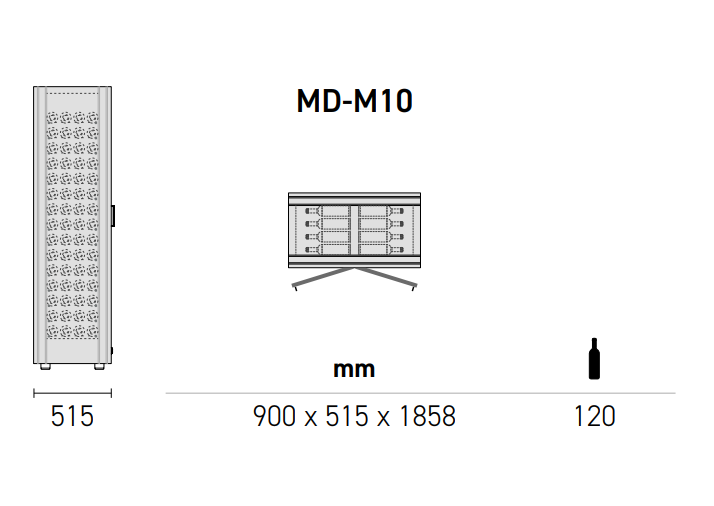

MD-M10 MODEL
The full size model at a depth of 515mm, the MD-M10 can hold 120 bottles of wine and comes with white LED lighting, a choice of casing design, quiet cooling at just 39 dB and 2 sliding glass doors with a solid back wall. This wine wall benefits from a lock and key, charcoal filter for ageing and an anti vibration system.
Dimensions: Height: 1858mm Width: 900mm Depth: 515mm Weight: 120kg

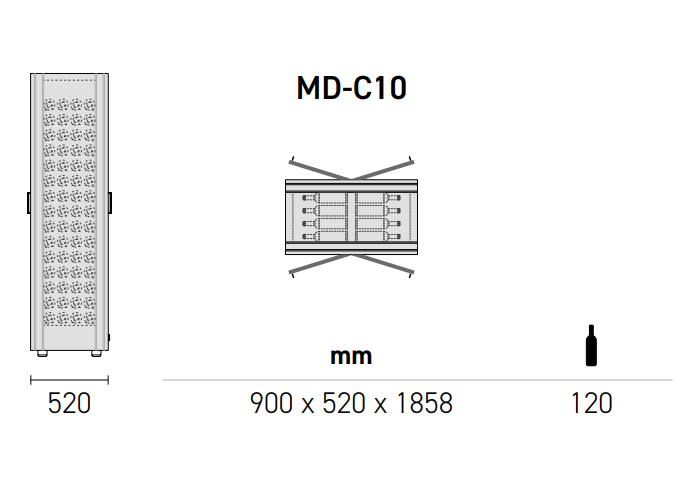

MD-C10 MODEL
At a depth of 520mm, the MD-C10 can hold up to 120 bottles of wine and comes with white LED lighting, a choice of casing design, quiet cooling at just 39 dB and 4 sliding glass doors with a 360 degree view of the wine. This wine wall benefits from a lock and key, charcoal filter for ageing and an anti vibration system.
Dimensions: Height: 1858mm Width: 900mm Depth: 520mm Weight: 120kg
FIVE REASONS TO BUY WITH COOLERSOMM
- Interior Design/Architecture resource in-house
- Free UK Delivery - 2 Man Team - White Glove Service
- Trusted Specialists - Five Star Trustpilot Rating
- London Showroom for Advice
- Free bottle of vintage Pol Roger completion gift
How does the temperature control work on this wine wall?
The Mod 10 wine walls operate multiple temperature zones and offer a wide range of temperature options through the unit through the use of fans.
The temperature is set using the digital control panel which also controls the lighting, fans and defrost cycle.
Example temperature operation
Fans off - the wine wall will operate between 4°C at the bottom and 16°C at the top if set at 4°C - this is ideal for multi temperature service.
Fans on - the wine wall will operate between 6°C at the bottom and 12°C at the top for white wines of, if set at 6°C or 14°C-16°C if set at 14°C for red wine.
The fan use creates a smaller temperature range as the cool air can be distributed evenly through the unit.
Can I pay for this wine wall in instalments?
You can pay by instalments via PayPal who allow you to pay over 6, 12, 24 or up to 36 months and have a 4 month, 0% interest instalment plan for US and UK customers. If you wish to pay by instalments choose PayPal at check out. You can also pay in full with a debit card, Visa, Mastercard, Amex, Google Pay or PayPal.
Does the Mod 10 range come with a manufacturer warranty?
Yes, there is a one year parts and labour warranty on this product.
Can I customise this wine wall to suit my needs?
Yes, the black aluminium frame can be covered in a range of materials and colours, please see the product catalogue to create a bespoke design perfect for your living space. The web pricing includes only the black aluminium frame, talk to us for a range of pricing for the other colours.
You can also use the wine wall configurator tool to get a 360 view of how your wine wall could look with different materials.
You can also select standard white LED lighting or for £299 upgrade to RGB / CBD lighting.
How do I order a wine wall?
These are large, personalised purchases that you'll want to get right for your home or commercial premises. You can call us, use the chat function or email info@coolersomm.com to place your order. You can also place your order here on the website, after the order is received we will contact you to discuss the specifics of your home and design.
How do I install the wine wall?
There are certain installation requirements needed for each model, please refer to their specification for instructions.
For example, to install the TE-BH10 / MD-H10 ('H' line - shallow depth) correctly and ensure the units do not overheat - it is advised the a gap of 30mm or more is left at the back of the unit - firstly to prevent any unwanted vibrations but also to allow warm air to escape above the wine wall.
The cool air enters the wine wall from the bottom so the feet must not be covered - the airflow should be free and unhindered.
For built in installation, there must be a vent / open space at the top of the unit to allow warm air to escape.
Technical Specification
MD-H10 specification
Dimensions: Height: 1858mm Width: 900mm Depth: 363mm
Weight: 97kg
MD-M10 specification
Dimensions: Height: 1858mm Width: 900mm Depth: 515mm
Weight: 120kg
MD-C10 specification
Dimensions: Height: 1858mm Width: 900mm Depth: 520mm
Weight: 120kg
DELIVERY INFORMATION
We can deliver the Mod 10 range throughout the UK, Europe, the USA and Caribbean.
UK mainland delivery is free. We provide a professional two-man delivery team who will deliver the wine wall to the ground floor room of your choice, unpack, place your wine cooler in your desired spot and take the excess wrapping away in the UK only. They will not install the wine fridge into a cavity for you, if you need the wine wall building in then your own contractor will need to complete this role.
If you need your wine wall placing in a room either up or down flights of stairs or you can envisage any access issues during delivery please contact us in advance to outline the specifics of your delivery.
Delivery to Europe, the US and Worldwide can be provided at an additional charge - please email quote@coolersomm.com for a quote.
Delivery lead times on these bespoke products are 4-6 weeks from Italy.
